Vacuum Dehydration System

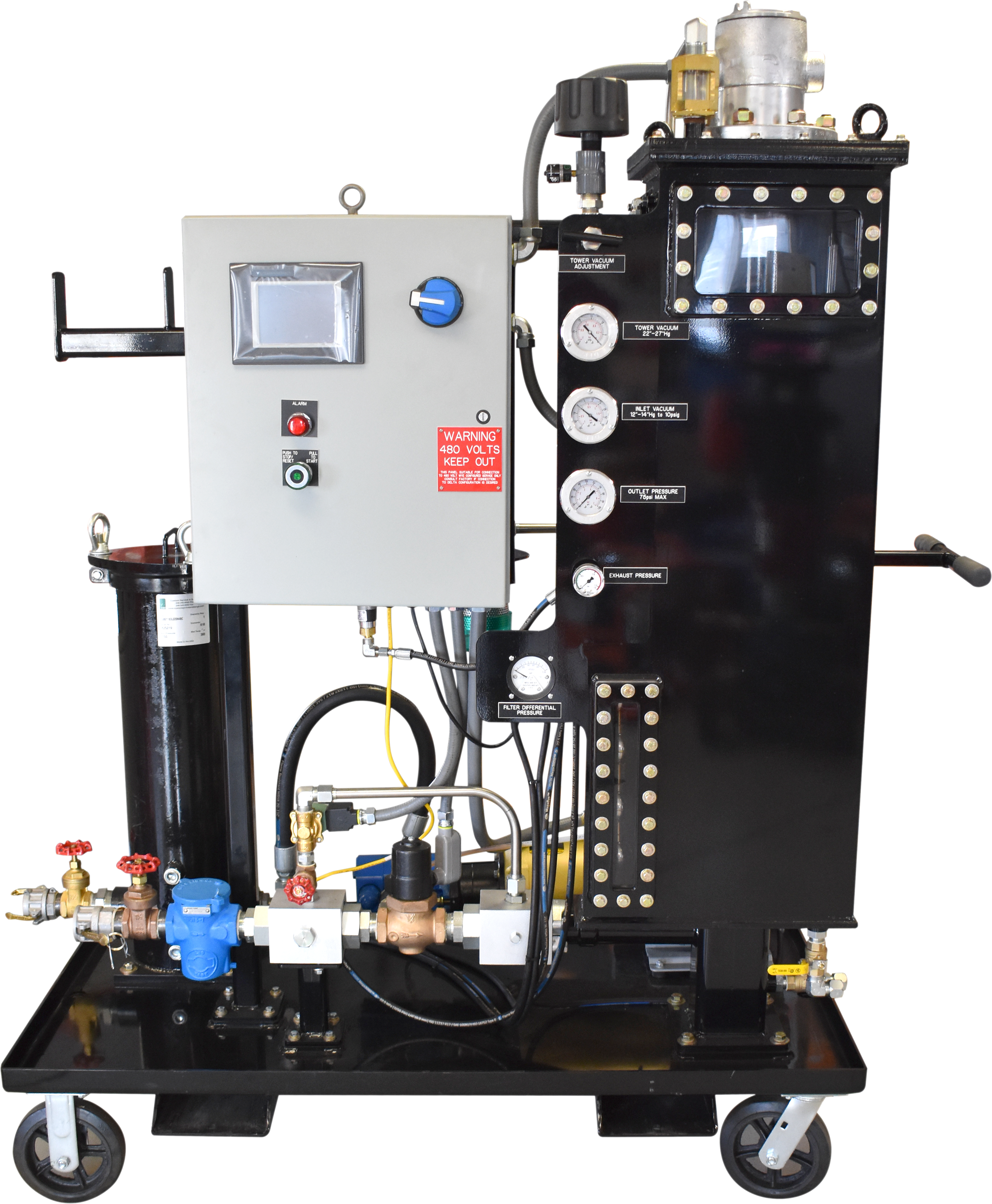

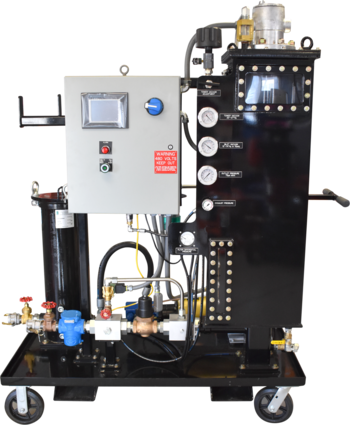

Vacuum Dehydration FD-15

The purpose of the FD-15 Vacuum Dehydration System is to serve as an oil treatment system. By removing water (dissolved, emulsified and free), gasses and solid contaminants the oil can return to its original condition, and be reused in lubricating systems. Having clean, dry oil will allow hydraulic and lubricating systems to perform more efficiently and can result in significant financial gains. The need to purchase new lubricating oils can be reduced and in some cases eliminated completely.

To begin, the oil is brought into the chamber and passed over the heater and heated. It then is dispersed over the Pall Rings , located inside the tower, and then exposed to a vacuum, usually between 22-25”Hg.

After the oil has been degassed and dehydrated it is pumped out of the bottom of the tower via the hydraulic pump into the filter to remove any contaminants before it enters the reservoir or system again.

In order to optimize this process the FD-15 Purifier is partially automated with a PLC and series of electrically controlled switches. Data, diagnostics, alerts and many help screens can be accessed on the control panel touch screen display.

Typical Applications:

Filtering Pulp and Paper lube systems
Filtering steam turbine lube systems
Filtering hydraulic reservoirs
Filtering rolling mill lube tanks
And many other industrial applications containing oil

Typical Industries:

Power Generation
Mining
Pulp and Paper
Steel
Automotive Manufacturing

Vacuum Dehydration FD Series PDF

Flow Rate	15 GPM
Vacuum Pump Flow Rate:	13 CFM
Heater Capacity:	18KW @ 15wsi
Motors	Electric, 480 VAC, 3 Phase, 30 amp *Other voltages available including explosion proof.
Plumbing	Inlet: 1 1/2" FNPT; Outlet: 1 1/2" FNPT *Unit comes with (1) 1-1/2” 10ft. hose, (1) 1-1/2” 15ft. hose with camlock and groove connections.
Approximate Dry Weight	1300 lbs
Dimensions	54"L x 31"W x 78"H
Chamber	Pall Dispersion Rings; never have to get in chamber to change filter elements
Chamber Vaccum	Adjustable; ideal range is 22-27" Hg
Fluid Temperature	Factory set at 145°F and is customer adjustable up to 165°F
Filtration	1 ea - 6x18 Filter Element, 3 Micron/Beta 1000
Seal Material (s)	Buna N, Viton, EPDM or EPR
Max Fluid Viscosity	ISO 680 or 4250 SUS
Continuous Heater Flow	Minimum 2-5 GPM continuous flow through heater to prevent oil coking
Console Remote Alarm	250 V, 10 amp dry contact rating
Wheel Configuration	Caster wheels, pneumatic tires, fork lift pockets or floor mount
Water Removal Rate	The removal rate of water will vary depending on fluid properties and application parameters
Moisture Content Monitor	Measures in % and will shut down when it reads 0%
Operator Interface Panel Features	One button on/off. Auto shut down if operating parameters move outside of limits. Panel displays all conditions, including causes and remedies. Help screen.
