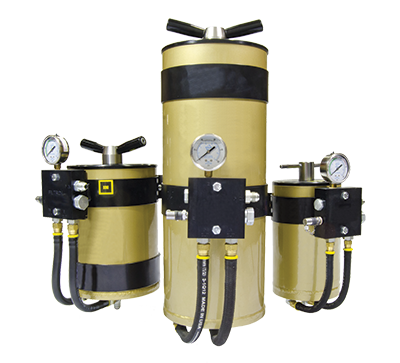

GOLD High Pressure Series (GHP-200)

Product

GOLD High Pressure Series (GHP)

GOLD High Pressure Series (GHP-25) GOLD High Pressure Series (GHP-50) GOLD High Pressure Series (GHP-100) GOLD High Pressure Series (GHP-200) GOLD High Pressure Series (GHP-300) GOLD High Pressure Series (GHP-400)

Request a Quote

Taps Into Your System to Integrate Seamlessly
GHP units tap into high pressure systems, bleeding off a small amount of oil, eliminating the need for external pumps and additional power sources. Sample parts are provided for easy oil sampling. No tools necessary for element changes with T-bar style handles. And has the option of adding a laser particle counter so you can always know your oil condition in real time.

By filtering down to 1 micron, our units maintain cleanliness levels several grades cleaner than brand new oil, which significantly extends the life of components and oil. Preventing contamination wear for critical lubricated components saves significant time, money and resources.

Typical Applications:

Mining Operations
Power Plants
Paper Mills
Metal Stamping
Injection Molding
Marine Vessels
Government Satellite Operations
Hay Compression
Construction
Forestry
Port Equipment

Features & Benefits:

Filters down to 1 micron, several grades cleaner than new oil
Moisture removal down to 100ppm
Lower ISO codes
Heater option allows for viscosities up to 1000 cSt
Sample port for easily drawn oil samples
Depth-style filtration for maximum dirt holding capacity and efficiency
Reduces Contamination Failure in Hydraulic Systems, Transmission Fluids, Mobile Hydraulic Systems and Stationary Hydraulic Systems

GOLD High Pressure Series (GHP) PDF

Frame	Housing and 4 bolt mounting brackets
Flow Rate	2.5 GPM
Filter Housings	2
Dirt Holding Capacity	10 lbs
Water Holding Capacity	2 gallons
Housing Oil Capacity	40 quarts
Min./Max. Pressure at Flow Control Valve	*200 - 3,000/5,000 psi Every industrial application and environment is different. Units are sized for a 15% turn of a hydraulic reservoir every hour. For higher ingression rates and excessive moisture removal or for engine oil or gear oil applications please speak with our application engineer to determine the right size unit for your application. Critical components might also require up sizing for optimally targeted ISO code results.
